[IGSSTATION-8513] update station AGGO00ARG
Alfredo Pasquaré
alfredo.pasquare at aggo-conicet.gob.ar
Wed Oct 12 15:29:42 UTC 2022
Dear community,
I am attaching information about the last update made in the observatory that affected the height of the GNSS antenna. The reason is the incorporation of a structure in its base that facilitates the measurements of the local ties without the need to remove the antenna each time the campaign is carried out.

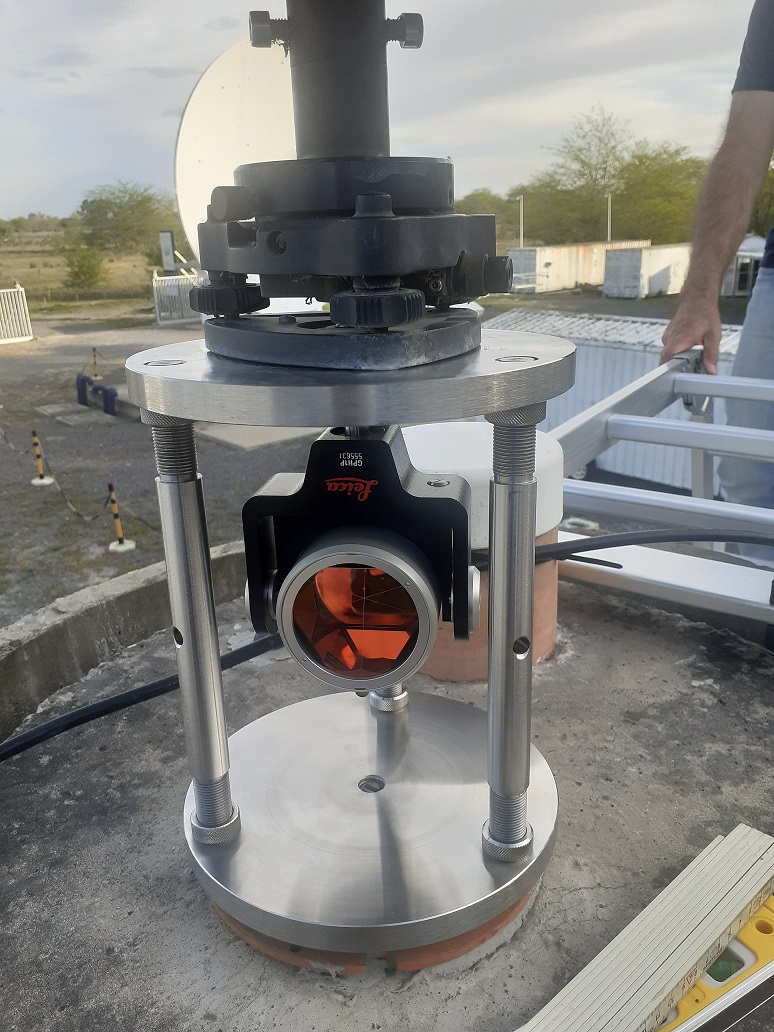

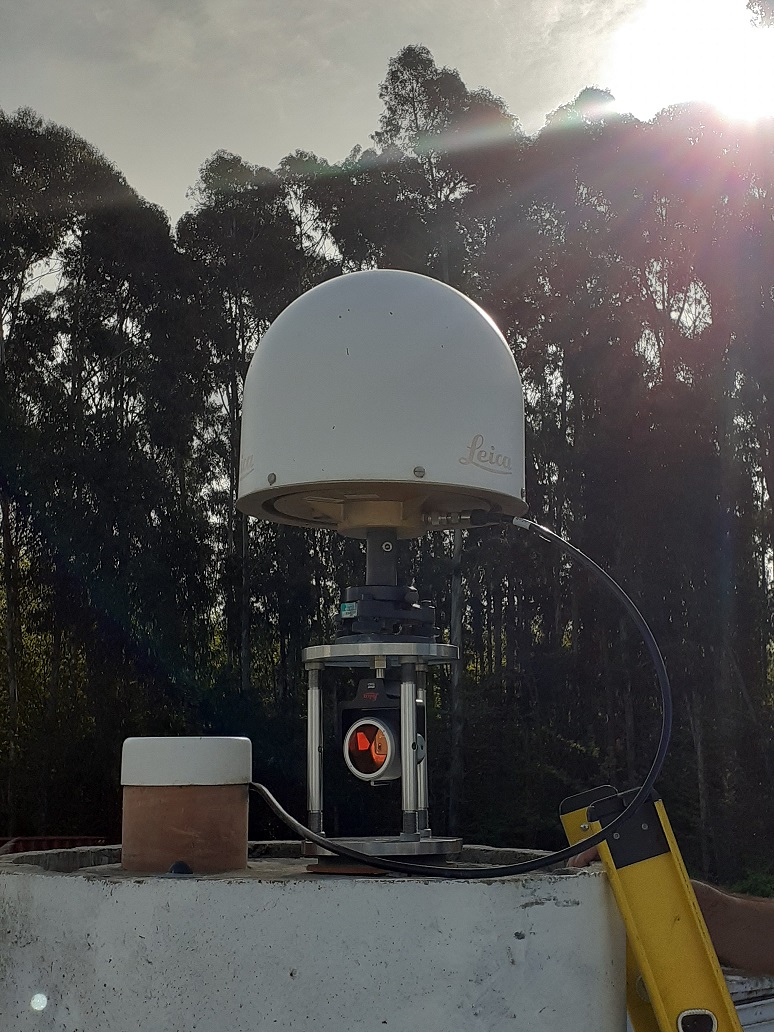

You can see in the attached photos how the final position of the antenna with the mentioned structure has been left.
Any questions or queries I am available to anyone who requires it.
Best regards
Alfredo
----------------------------------------------------------
Ing. Alfredo O. PasquaréObservatorio Argentino Alemán de Geodesia AGGO
BKG - CONICET
+54 0221 644 3203
Camino General Belgrano Km 40
Parque Pereyra Iraola - Berazategui - CP: 1888
Buenos Aires - Argentina
----------------------------------------------------------
-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20221012/174da37f/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AGGO Ant_1.jpg
Type: image/jpeg
Size: 351380 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20221012/174da37f/attachment-0003.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AGGO Ant_2.jpg
Type: image/jpeg
Size: 324898 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20221012/174da37f/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: AGGO Ant_3.jpg
Type: image/jpeg
Size: 343285 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20221012/174da37f/attachment-0005.jpg>
-------------- next part --------------
AGGO00ARG Site Information Form (site log)
International GNSS Service
See Instructions at:
https://files.igs.org/pub/station/general/sitelog_instr.txt
0. Form
Prepared by (full name) : Alfredo Pasquare
Date Prepared : 2022-10-11
Report Type : update
If Update:
Previous Site Log : aggo_20211005.log
Modified/Added Sections : 0, 4.1, 4.1
1. Site Identification of the GNSS Monument
Site Name : AGGO / Argentina
Four Character ID : AGGO
Monument Inscription : Pillar
IERS DOMES Number : 41596M001
CDP Number : AGGO
Monument Description : CONCRETE PILLAR
Height of the Monument : 4.0 m
Monument Foundation : CONCRETE BLOCK
Foundation Depth : 3.5 m
Marker Description : Pillar plate 14A
Date Installed : 2016-11-11T00:00Z
Geologic Characteristic : sedimentary basin
Bedrock Type : METAMORPHIC PRECAMBRIAN BASEMENT
Bedrock Condition : sediments
Fracture Spacing : none
Fault zones nearby : No
Distance/activity :
Additional Information : Argentinean German Geodetic Observatory (AGGO)
: The pillar is insulated by an outer cylinder of
: concrete
: Pillar plate 14A - standard version (Goecke
: Schwelm) and semipherical vertical
: reference marker next to pillar plate
: Metamorphic Precambrian basement, lower
: Cretaceous and upper Jurassic rocks (the
: maximum sedimentary thickness is 6500m to 7000m)
2. Site Location Information
City or Town : La Plata
State or Province : Province of Buenos Aires
Country : Argentina
Tectonic Plate : SOUTH AMERICAN
Approximate Position (ITRF)
X coordinate (m) : +2765120.9
Y coordinate (m) : -4449250.25
Z coordinate (m) : -3626405.6
Latitude (N is +) : -345225.35
Longitude (E is +) : -0580823.50
Elevation (m,ellips.) : 00042.085
Additional Information :
3. GNSS Receiver Information
3.1 Receiver Type : SEPT POLARX4TR
Satellite System : GPS+GLO+GAL+BDS+SBAS
Serial Number : 3002049
Firmware Version : 2.9.6
Elevation Cutoff Setting : 0 deg
Date Installed : 2016-11-11T10:45Z
Date Removed : 2018-12-06T20:35Z
Temperature Stabiliz. : 5
Additional Information :
3.2 Receiver Type : SEPT POLARX4TR
Satellite System : GPS+GLO+GAL+BDS+SBAS
Serial Number : 3002049
Firmware Version : 2.9.6-patch2
Elevation Cutoff Setting : 0 deg
Date Installed : 2018-12-06T20:40Z
Date Removed : 2020-05-07T00:00Z
Temperature Stabiliz. : 5
Additional Information : The Septentrio PolaRx4 failed.
3.3 Receiver Type : LEICA GRX1200+GNSS
Satellite System : GPS+GLO+GAL+SBAS
Serial Number : 495886
Firmware Version : 8.71/6.112
Elevation Cutoff Setting : 0 deg
Date Installed : 2020-05-08T09:00Z
Date Removed : 2020-06-19T08:00Z
Temperature Stabiliz. : none
Additional Information : Spare receiver for faulty PolaRx4
3.4 Receiver Type : LEICA GRX1200+GNSS
Satellite System : GPS+GLO+GAL+SBAS
Serial Number : 495886
Firmware Version : 9.20/6.407
Elevation Cutoff Setting : 0 deg
Date Installed : 2020-06-19T08:55Z
Date Removed : 2021-03-29T14:00Z
Temperature Stabiliz. :
Additional Information : Spare receiver for faulty PolaRx4
3.5 Receiver Type : SEPT POLARX5TR
Satellite System : GPS+GLO+GAL+BDS+SBAS+IRNSS
Serial Number : 3228290
Firmware Version : 5.4.0
Elevation Cutoff Setting : 0 deg
Date Installed : 2021-03-29T15:00Z
Date Removed : CCYY-MM-DDThh:mmZ
Temperature Stabiliz. : none
Additional Information :
3.x Receiver Type : (A20, from rcvr_ant.tab; see instructions)
Satellite System : (GPS+GLO+GAL+BDS+QZSS+SBAS)
Serial Number : (A20, but note the first A5 is used in SINEX)
Firmware Version : (A11)
Elevation Cutoff Setting : (deg)
Date Installed : (CCYY-MM-DDThh:mmZ)
Date Removed : (CCYY-MM-DDThh:mmZ)
Temperature Stabiliz. : (none or tolerance in degrees C)
Additional Information : (multiple lines)
4. GNSS Antenna Information
4.1 Antenna Type : LEIAR25.R4 LEIT
Serial Number : 726722
Antenna Reference Point : BPA
Marker->ARP Up Ecc. (m) : 000.1550
Marker->ARP North Ecc(m) : 000.0000
Marker->ARP East Ecc(m) : 000.0000
Alignment from True N : 0 deg
Antenna Radome Type : LEIT
Radome Serial Number :
Antenna Cable Type : Nokia Cable M17/75-RG214
Antenna Cable Length : 60 m
Date Installed : 2016-11-11T10:30Z
Date Removed : 2021-05-11T12:30Z
Additional Information : Antenna and radome calibrated by
: Geo+++ GmbH, 2013-11-22.
: antenna height refering to vertical
: reference marker at pillar
4.2 Antenna Type : LEIAR25.R4 LEIT
Serial Number : 726722
Antenna Reference Point : BPA
Marker->ARP Up Ecc. (m) : 000.4400
Marker->ARP North Ecc(m) : 000.0000
Marker->ARP East Ecc(m) : 000.0000
Alignment from True N : 0 deg
Antenna Radome Type : LEIT
Radome Serial Number :
Antenna Cable Type : EcoFlex 10 Cable 50 ohms
Antenna Cable Length : 50 m
Date Installed : 2021-05-11T13:30Z
Date Removed : CCYY-MM-DDThh:mmZ
Additional Information : Antenna and radome calibrated by
: Geo+++ GmbH, 2013-11-22.
: antenna height refering to vertical
: reference marker at pillar
4.x Antenna Type : (A20, from rcvr_ant.tab; see instructions)
Serial Number : (A*, but note the first A5 is used in SINEX)
Antenna Reference Point : (BPA/BCR/XXX from "antenna.gra"; see instr.)
Marker->ARP Up Ecc. (m) : (F8.4)
Marker->ARP North Ecc(m) : (F8.4)
Marker->ARP East Ecc(m) : (F8.4)
Alignment from True N : (deg; + is clockwise/east)
Antenna Radome Type : (A4 from rcvr_ant.tab; see instructions)
Radome Serial Number :
Antenna Cable Type : (vendor & type number)
Antenna Cable Length : (m)
Date Installed : (CCYY-MM-DDThh:mmZ)
Date Removed : (CCYY-MM-DDThh:mmZ)
Additional Information : (multiple lines)
5. Surveyed Local Ties
5.1 Tied Marker Name : SLR AGGO
Tied Marker Usage : SLR
Tied Marker CDP Number : 7408
Tied Marker DOMES Number : 41596M002
Differential Components from GNSS Marker to the tied monument (ITRS)
dx (m) :
dy (m) :
dz (m) :
Accuracy (mm) :
Survey method :
Date Measured : (CCYY-MM-DDThh:mmZ)
Additional Information :
5.2 Tied Marker Name : VLBI AGGO
Tied Marker Usage : VLBI
Tied Marker CDP Number : 7641
Tied Marker DOMES Number : 41596S002
Differential Components from GNSS Marker to the tied monument (ITRS)
dx (m) :
dy (m) :
dz (m) :
Accuracy (mm) :
Survey method :
Date Measured : (CCYY-MM-DDThh:mmZ)
Additional Information :
5.x Tied Marker Name :
Tied Marker Usage : (SLR/VLBI/LOCAL CONTROL/FOOTPRINT/etc)
Tied Marker CDP Number : (A4)
Tied Marker DOMES Number : (A9)
Differential Components from GNSS Marker to the tied monument (ITRS)
dx (m) : (m)
dy (m) : (m)
dz (m) : (m)
Accuracy (mm) : (mm)
Survey method : (GPS CAMPAIGN/TRILATERATION/TRIANGULATION/etc)
Date Measured : (CCYY-MM-DDThh:mmZ)
Additional Information : (multiple lines)
6. Frequency Standard
6.1 Standard Type : EXTERNAL CESIUM 1
Input Frequency : 10 MHz
Effective Dates : 2016-12-21/CCYY-MM-DD
Notes : Cs1
6.x Standard Type : (INTERNAL or EXTERNAL H-MASER/CESIUM/etc)
Input Frequency : (if external)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
7. Collocation Information
7.1 Instrumentation Type : VLBI
Status : PERMANENT
Effective Dates : 2017-01-01/CCYY-MM-DD
Notes : 6m primary focus offset radiotelescope
: (previously used at TIGOCONC)
: DOMES 41596S002 : for the VLBI rotation
: axis intersection (CDP 7641)
7.2 Instrumentation Type : SLR
Status : PERMANENT
Effective Dates : 2017-01-01/CCYY-MM-DD
Notes : 50cm aperture optical telescope with
: dual-colour 100Hz laser system
: DOMES 41596S001 : for the SLR rotation
: axis intersection (CDP 7408)
7.3 Instrumentation Type : TIME
Status : PERMANENT
Effective Dates : 2017-01-01/CCYY-MM-DD
Notes : 3 cesium standards (Cs1, Cs2, Cs3),
: 2 H-maser (Efos-20, Efos-24)
7.x Instrumentation Type : (GPS/GLONASS/DORIS/PRARE/SLR/VLBI/TIME/etc)
Status : (PERMANENT/MOBILE)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8. Meteorological Instrumentation
8.1.x Humidity Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy (% rel h) : (% rel h)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.2.x Pressure Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (hPa)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.3.x Temp. Sensor Model :
Manufacturer :
Serial Number :
Data Sampling Interval : (sec)
Accuracy : (deg C)
Aspiration : (UNASPIRATED/NATURAL/FAN/etc)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.4.x Water Vapor Radiometer :
Manufacturer :
Serial Number :
Distance to Antenna : (m)
Height Diff to Ant : (m)
Calibration date : (CCYY-MM-DD)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Notes : (multiple lines)
8.5.x Other Instrumentation : (multiple lines)
9. Local Ongoing Conditions Possibly Affecting Computed Position
9.1.x Radio Interferences : (TV/CELL PHONE ANTENNA/RADAR/etc)
Observed Degradations : (SN RATIO/DATA GAPS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.2.x Multipath Sources : (METAL ROOF/DOME/VLBI ANTENNA/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
9.3.x Signal Obstructions : (TREES/BUILDINGS/etc)
Effective Dates : (CCYY-MM-DD/CCYY-MM-DD)
Additional Information : (multiple lines)
10. Local Episodic Effects Possibly Affecting Data Quality
10.x Date : (CCYY-MM-DD/CCYY-MM-DD)
Event : (TREE CLEARING/CONSTRUCTION/etc)
11. On-Site, Point of Contact Agency Information
Agency : Argentinean-German Geodetic Observatory (AGGO)
: Consejo Nacional de Investigaciones
: Cientificas y Tecnicas (CONICET),
: Argentina and Bundesamt fuer Kartographie und
: Geodaesie (BKG), Germany
Preferred Abbreviation : AGGO
Mailing Address : CONICET CCT La Plata
: Calle 8 No 1467
: B1904CMC La Plata
: Argentina
Primary Contact
Contact Name : Alfredo Pasquare
Telephone (primary) : +54-221-6443203
Telephone (secondary) :
Fax :
E-mail : apasquare at aggo-conicet.gob.ar
Secondary Contact
Contact Name : Augusto Cassino
Telephone (primary) : +54-221-6443203
Telephone (secondary) :
Fax :
E-mail : acassino at aggo-conicet.gob.ar
Additional Information :
12. Responsible Agency (if different from 11.)
Agency : Bundesamt fuer Kartographie und Geodaesie
Preferred Abbreviation : BKG
Mailing Address : BKG Wettzell,
: Sackenrieder Str. 25,
: 93444 Bad Koetzting,
: Germany
Primary Contact
Contact Name : Dr. Hayo Hase
Telephone (primary) : +49-9941-603-106
Telephone (secondary) : +54-221-644-3202 anexo 101
Fax : +49-9941-603-222
E-mail : hayo.hase at bkg.bund.de
Secondary Contact
Contact Name : GOW Operator
Telephone (primary) : +49-9941-603-0
Telephone (secondary) : +49-9941-603-128
Fax : +49-9941-603-222
E-mail : vl_gnss_wettzell at bkg.bund.de
Additional Information :
13. More Information
Primary Data Center : BKG
Secondary Data Center : IGN
URL for More Information :
Hardcopy on File
Site Map :
Site Diagram :
Horizon Mask :
Monument Description :
Site Pictures :
Additional Information :
Antenna Graphics with Dimensions
(insert text graphic from file antenna.gra)
LEIAR25.R4
from 2016-04-07
+-------+ <-- 0.1995
/ \
+---+-------------+---+ <-- 0.1675 TCR
| |
|---------------------------|
|---------------------------------|
|---------------------------------------|
+---------------------------------------------+
| |
| |
+-+---------------------------------------------+-+
+-----------------+-------------+-----------------+ <-- 0.0320 BCR
| |
| |
+------x------+ <-- 0.0000 BPA=ARP
<-- 0.3802 -->
ARP: Antenna Reference Point
L1 : L1 Phase Center L2 : L2 Phase Center
TCR: Top of Chokering BCR: Bottom of Chokering
TGP: Top of Ground Plane BGP: Bottom of Ground Plane
TPA: Top of Preamplifier BPA: Bottom of Preamplifier
TOP: Top of Pole
More information about the IGSSTATION
mailing list
