[IGSSTATION-8464] ACSO00USA station damage repaired

[David Maggert]

Dear Colleagues,

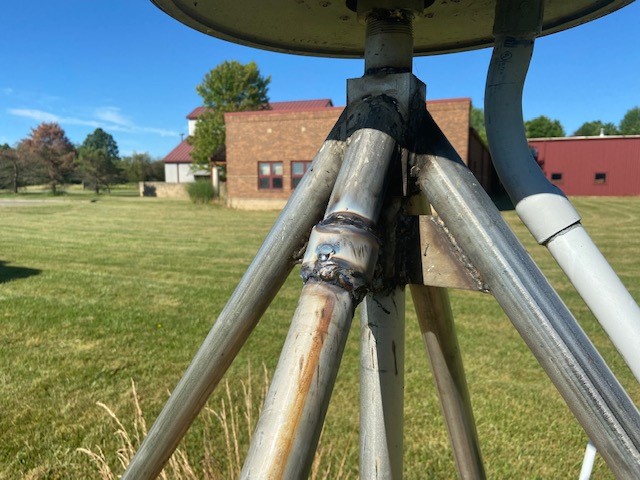

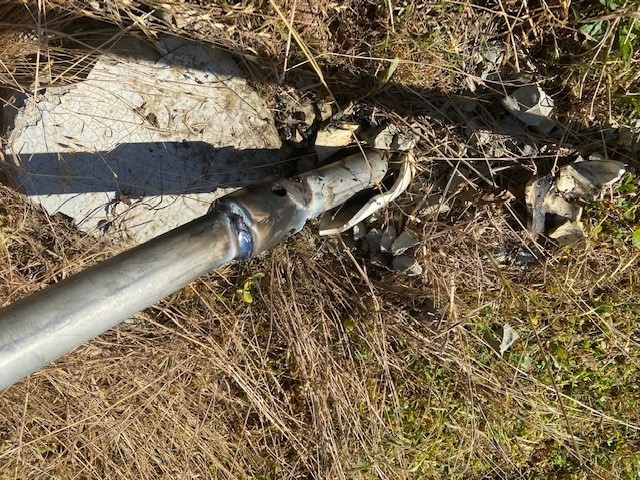

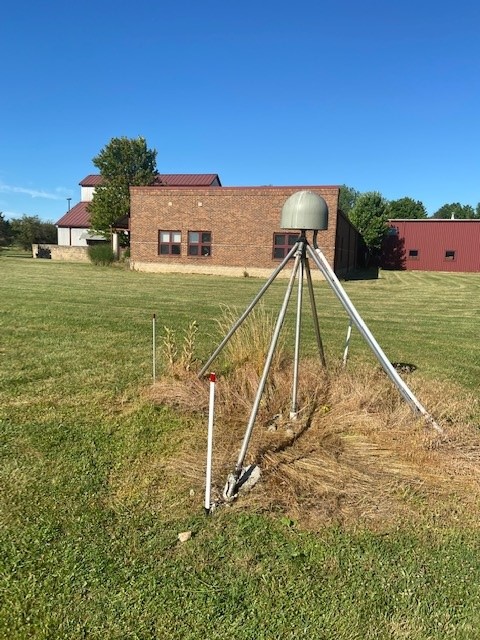

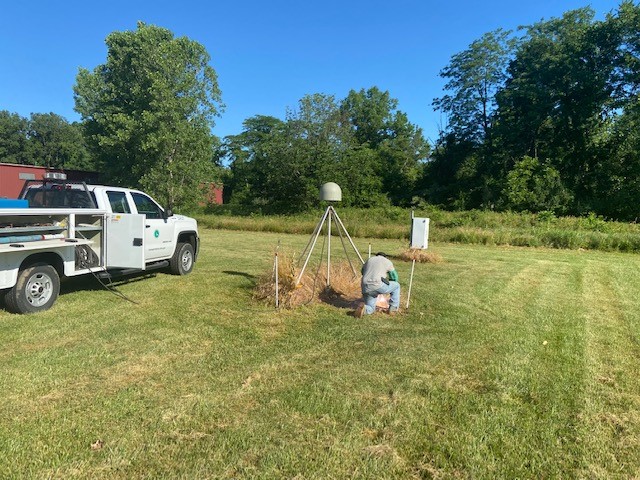

It was previously announced in IGSSTATION-8432 that one of the legs of the ACSO00USA monument had major damage.  The UNAVCO field engineering team repaired the monument damage on 17-JUN-2022.  The bent leg was cut off and a new leg splice was installed using stainless steel couplers that were welded in place.  The repair was non-disruptive and should not impact the position time-series.  I have included some photos of the repair work below.

Best Regards,
David Maggert




-------------- next part --------------
An HTML attachment was scrubbed...
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20220628/88632e45/attachment-0001.htm>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ACSO fix 1.jpg
Type: image/jpeg
Size: 141349 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20220628/88632e45/attachment-0004.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ACSO fix 2.jpg
Type: image/jpeg
Size: 96937 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20220628/88632e45/attachment-0005.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ACSO fix 3.jpg
Type: image/jpeg
Size: 184922 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20220628/88632e45/attachment-0006.jpg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ACSO fix 4.jpg
Type: image/jpeg
Size: 122155 bytes
Desc: not available
URL: <http://lists.igs.org/pipermail/igsstation/attachments/20220628/88632e45/attachment-0007.jpg>
